I had to purchase the sensor and gauge (2 parts). I can only speak to the 2006 Montauk 170 with 90HP FourStroke EFI YamaMerc.
#How To Install Teleflex Pro Trim full version#
Thanks, Bruce GreatBayNH posted 04:14 PM ET (US) Questions: 1) Did you purchase the trim sensor with the trim gauge or does that model Mercury engine have it built in?Ģ) What model Boston Whaler do you have? Tekken 5 Game Free Download For Pc Full Version Windows 7 here. Please don't be offended with my response. Descargar Videos Canciones Infantiles Cubanas. I'm not a dunderhead, just new to boating electrics. I appreciate all the infomation so far, but I really need 2007 specific, 115 ho, 4-stroke info0rmation. I can't seem to find the link between the two. I hav one wire coming out of the trim sensor, solid black wiht a white stripe.
I have two wires coming out of the throttle control box, one red & yellow and the other red. I don't want to offend anyone who's tried to help me,but I think there may be sone specific information that I need. Seaboss19b posted 03:42 PM ET (US) Thanks for the quick response. GreatBayNH posted 10:21 AM ET (US).to back up what swist said. Jim's advice to find a wiring diagram is the way to go.
Note this is not exactly the same engine, and changes may have been made in recent years. It's basically plug-and-play! It took me about an hour to install my gauge, and 45 minutes of that was cutting the hole and dealing with the not-so-great rats nest of wires behind the instrument panel, with little slack and very tight working room. Two wires come out of the sender pot - one goes to ground under one of the mounting screws, the other you run up to the engine through the rigging hose gland. Christian Funeral Malayalam Songs Free Download. The gauge sender on mine just screwed into pretapped holes that were already in the engine transom bracket. The other end of wire is inside the engine cowling at the rear just behind where the rigging hose goes in. It may be taped or tiewrapped to the bundle in the console such that it is hard to find, do some more poking - you may have to unwrap the bundle a bit and then re-tiewrap it when you find it.

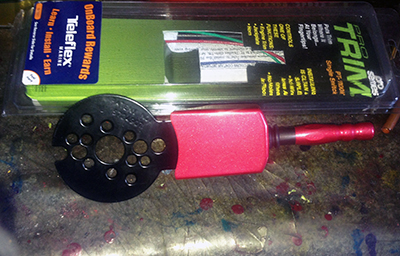

Allows fingertip adjustment of engine trim or jack plate. Teleflex Pro Trim Bezel Single Switch Trim control where it belongs at your fingertips Revolutionary trim control. Teleflex Marine is not responsible for charges connected with the removal of such product or reinstallation of replacement or repaired parts. Teleflex Marine’s sole responsibility under this warranty is limited to the repair or replacement of product which is, in Teleflex Marine’s opinion, defective. Swist posted 08:35 AM ET (US) In the 2004 version of that motor, the wire is brown/white (you only need one).
I know this is a simple install, I just need to find the right wires to connect. I've also looked online for the schematic for the power trim circuitry, but haven't run across one for late model 4-strokes. Seaboss19b posted 06:04 AM ET (US) I have a Teleflex trim gage and the schematic they provided is almost useless. Are tese the wires I should use or do I need to keep looking for the wires specifically designated for the meter? Any help would be greatly appreciated, jimh posted 11:20 PM ET (US) Get the schematic diagram for the circuitry you are trying to install. I did see a red, blue and green wire coming from the tril/trim switch. Well, I crawled under my center console and looked for the wires he described, but couldn't find them in the bundle coming out of the throttle control box. My dealer, 60 miles away, says it is a no-brainer. Author Topic: Mercury FOURSTROKE Trim Gauge Installation seaboss19b posted 06:01 PM ET (US) I have a Mercury 115 motor that I'd like to install a trim gauge.
